• Country
• Spain

• Manufacturer / Brand
• Marconi Española S.A. (Telmar); Villaverde

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118647

• Number of Tubes
• 7

• Valves / Tubes
• ECH42 EAF42 EAF42 EAF42 EM34 EL41 AZ41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 100-165 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Various materials

• from Radiomuseum.org

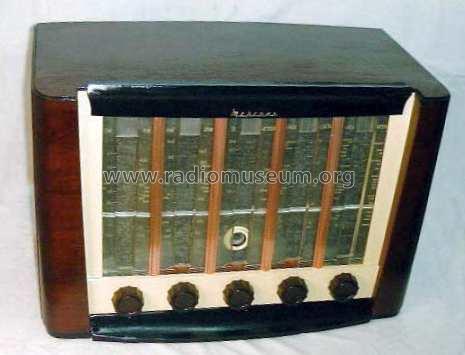

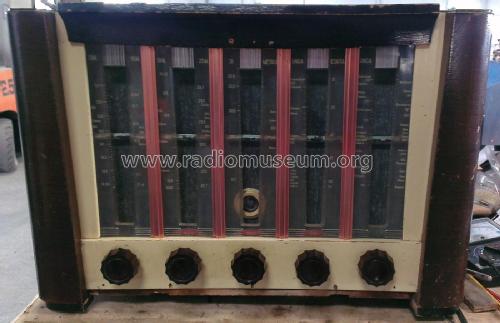

• Model: B73 - Marconi Española S.A. Telmar;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 540 x 360 x 30 mm / 21.3 x 14.2 x 1.2 inch

• Price in first year of sale
• 4,100.00 ptas.

• Source of data
• - - Data from my own collection

• Author
• Model page created by a member from E. See "Data change" for further contributors.

• Other Models

• Here you find 191 models, 148 with images and 94 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Marconi Española S.A. (Telmar); Villaverde
