Combiné Marconi Cinq (5) 225 Ch= 155 universel

Marconi (marque), Cie. Fse. du Gramophone; Paris

  • Year
  • 1933/1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 237350

 Technical Specifications

  • Number of Tubes
  • 5
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 125 kHz
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • AC/DC-set / 90-135 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Combiné Marconi Cinq 225 Ch= 155 [universel] - Marconi marque, Cie. Fse. du
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 505 x 855 x 365 mm / 19.9 x 33.7 x 14.4 inch
  • Notes

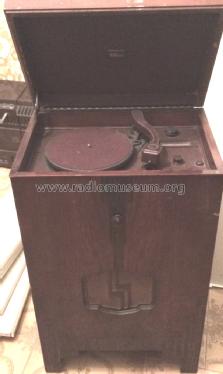

  • L'ensemble radio-pickup comporte le même châssis que le récepteur Marconi Cinq, un tourne-disque à moteur électrique universel, et un pick-up Marconi 19.

    Alimentation tous courants 90 à 135 volts.

    Meuble en noyer et macassar.

  • Price in first year of sale
  • 3,000.00 FRF
  • Mentioned in
  • -- Original prospect or advert (Dépliant 1934)
  • Literature/Schematics (1)
  • Radio & Phono Materiel, No. 95, Mars 1934
  • Author
  • Model page created by Mark Hippenstiel. See "Data change" for further contributors.
