• Year
  • 1948/1949 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 114111

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-130 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org

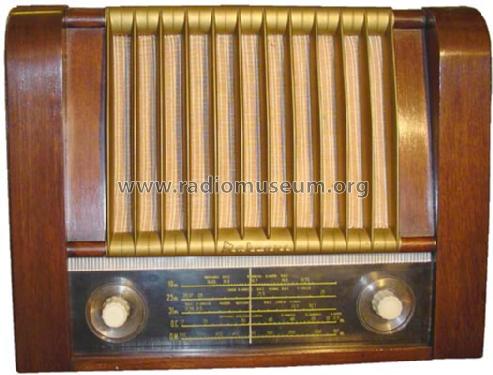

  • Model: L-155 - Marconi Española S.A. Telmar;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 420 x 330 x 210 mm / 16.5 x 13 x 8.3 inch
  • Literature/Schematics (1)
  • Publicidad de la época
  • Author
  • Model page created by a member from E. See "Data change" for further contributors.
