• Country
• Great Britain (UK)

• Manufacturer / Brand
• Marconi Instruments, Marconi-Ekco (MI, MEI)

• Year
• 1960 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 113828

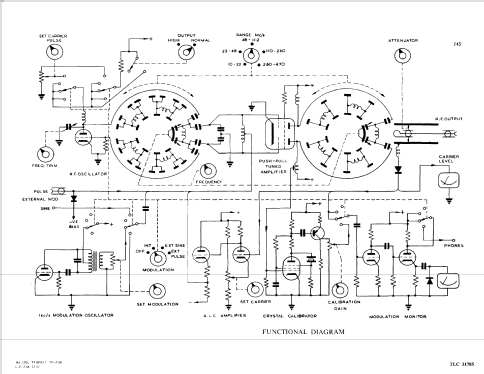

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• EF95 EF95 KT66 12AU7 12AT7 6AS6 EA76 DET22 5R4GY QQV02-6 5651

• Number of Transistors
• 1

• Semiconductors
• CG1E OC71 CS2A OA202 QO.1670A

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 100-150; 180-250 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: AM Signal Generator TF801D/1 - Marconi Instruments, Marconi-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 370 x 270 mm / 23.6 x 14.6 x 10.6 inch

• Notes

• AM signal generator providing CW, sine AM and pulsed output in the frequency range of 10 to 470 MHz, in 5 bands:

  • A = 10 - 22 MHz
  • B = 22 - 48 Mhz
  • C = 48 - 110 MHz
  • D = 110 - 260 MHz
  • E = 260 - 470 MHz

  Outputs:

  • Continuous Wave
  • Sinewave Modulation: internal (1 kHz) or external (30 Hz to 20 kHz) 0 to 90 %
  • External Source: between 30 Hz and 20 kHz
  • External Pulse Modulation
  • External Squarewave Modulation.

  RF output level from 0.1 µV to 1 V on 50 Ohm. Crystal calibrator for CW operation.

  The manual for devices with serial number JA502/001 and above dates from 7/1960. Some models have valve V11 (EA76) replaced by diode OA202.

• Net weight (2.2 lb = 1 kg)
• 31 kg / 68 lb 4.5 oz (68.282 lb)
