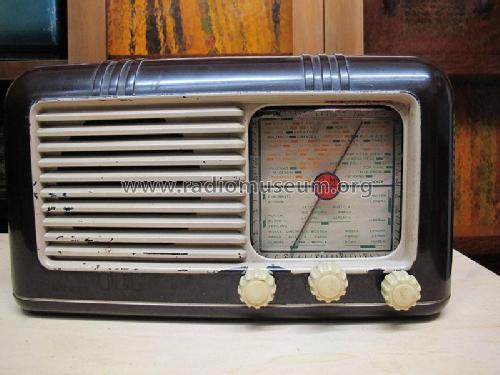

Lario M50
Marcucci; Milano
- Country
- Italy
- Manufacturer / Brand
- Marcucci; Milano
- Year
- 1950 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 294047
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Lario M50 - Marcucci; Milano
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 290 x 170 x 110 mm / 11.4 x 6.7 x 4.3 inch
- Notes
-
Esiste versione più recente con valvole rimlock
- Author
- Model page created by Maurizio Nicolussi. See "Data change" for further contributors.
