For model 10A55, Marelli (Radiomarelli); Sesto San Giovanni (MI):
Vista frontale (S.Baldi)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12EA7GT 12NK7GT 12Q7GT 50L6GT 35Z4GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 135; 160; 190; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: 10A55 - Marelli Radiomarelli; Sesto
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 620 x 380 x 280 mm / 24.4 x 15 x 11 inch
Notes

This set was featured in Fellini's movie "La strada".

Con presa per Pickup.

Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Source of data Guida Pratica Antique Radio II (2000)
Mentioned in -- Original prospect or advert

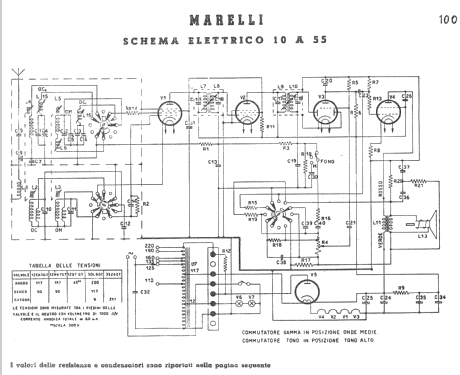

Literature/Schematics (1) Collezione di Schemi, Scuola Radio Elettra 1953 (pag. 100-101)
Literature/Schematics (2) Catalogo Radiomarelli - Produzione della Fabbrica Italiana Magneti Marelli - Milano - 4/1949

Model page created by Alessandro De Poi. See "Data change" for further contributors.
