Fido RD125

Fido RD125; Marelli Radiomarelli (ID = 257508) Radio

Fido RD125; Marelli Radiomarelli (ID = 257509) Radio
Fido RD125; Marelli Radiomarelli (ID = 552878) Radio Fido RD125; Marelli Radiomarelli (ID = 552879) Radio
Fido RD125; Marelli Radiomarelli (ID = 552880) Radio Fido RD125; Marelli Radiomarelli (ID = 652927) Radio

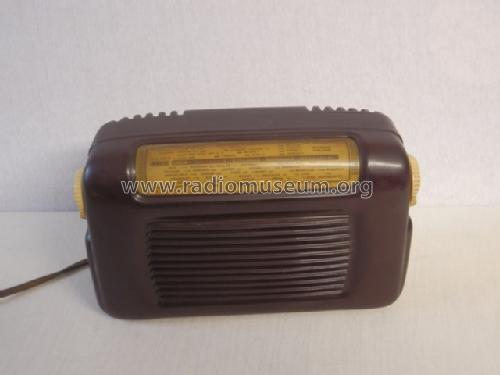

Fido RD125; Marelli Radiomarelli (ID = 652928) Radio Fido RD125; Marelli Radiomarelli (ID = 1118026) Radio
Fido RD125; Marelli Radiomarelli (ID = 2602115) Radio Fido RD125; Marelli Radiomarelli (ID = 2602116) Radio
Fido RD125; Marelli Radiomarelli (ID = 2602117) Radio
Use red slider bar for more.
Fido RD125; Marelli Radiomarelli (ID = 552878) Radio
Marelli Radiomarelli: Fido RD125 [Radio] ID = 552878 362x256
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fido RD125, Marelli (Radiomarelli); Sesto San Giovanni (MI):
Foto per cortesia del venditore ebay onit37 (ebay.it # 330298565428)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50B5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Fido RD125 - Marelli Radiomarelli; Sesto
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 240 x 100 x 135 mm / 9.4 x 3.9 x 5.3 inch
Notes Serie ANIE. Diverse varianti di colore.
L'apparecchio è nato per la tensione di 110÷125 V. Tramite un adattatore resistivo (Reduttore M200601/503), da collegarsi esternamente tra la spina e la presa di corrente, si poteva alimentare ad altre tensioni (135; 160; 175 Volt).
Source of data Guida Pratica Antique Radio IV (2001)
Literature/Schematics (1) Collezione di Schemi, Scuola Radio Elettra 1953 (pag. 78-79)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
