130C

130C; Marelli Radiomarelli (ID = 212722) Radio
130C; Marelli Radiomarelli (ID = 970563) Radio 130C; Marelli Radiomarelli (ID = 491046) Radio

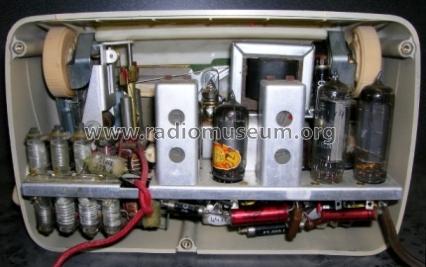

130C; Marelli Radiomarelli (ID = 574209) Radio 130C; Marelli Radiomarelli (ID = 491049) Radio
130C; Marelli Radiomarelli (ID = 970562) Radio 130C; Marelli Radiomarelli (ID = 970564) Radio
130C; Marelli Radiomarelli (ID = 239040) Radio 130C; Marelli Radiomarelli (ID = 970567) Radio
130C; Marelli Radiomarelli (ID = 574206) Radio 130C; Marelli Radiomarelli (ID = 970568) Radio
Use red slider bar for more.
130C; Marelli Radiomarelli (ID = 970563) Radio
Marelli Radiomarelli: 130C [Radio] ID = 970563 933x703
Select picture or schematic to display from thumbnails on the right and click for download.
For model 130C, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50B5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 110-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: 130C - Marelli Radiomarelli; Sesto
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 230 x 140 x 100 mm / 9.1 x 5.5 x 3.9 inch
Notes Gamme d'onda: medie, tropicali, 4 corte. Diverse varianti di colore. Prodotto per l'esportazione.
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Collectors' prices
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in Catalogo ANIE (1955-56)
Literature/Schematics (1) -- Schematic

Model page created by Manuel Marabuto. See "Data change" for further contributors.
