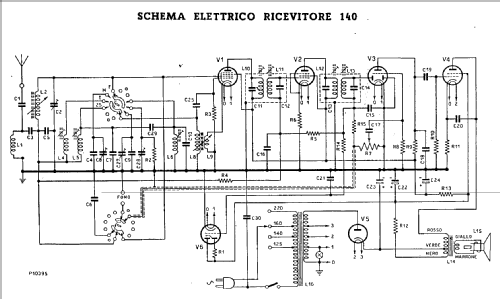

140; Marelli Radiomarelli (ID = 610279) Radio

140; Marelli Radiomarelli (ID = 610272) Radio

140; Marelli Radiomarelli (ID = 610278) Radio

140; Marelli Radiomarelli (ID = 610275) Radio
140; Marelli Radiomarelli (ID = 618002) Radio 140; Marelli Radiomarelli (ID = 618000) Radio
140; Marelli Radiomarelli (ID = 617999) Radio 140; Marelli Radiomarelli (ID = 618003) Radio
Use red slider bar for more.

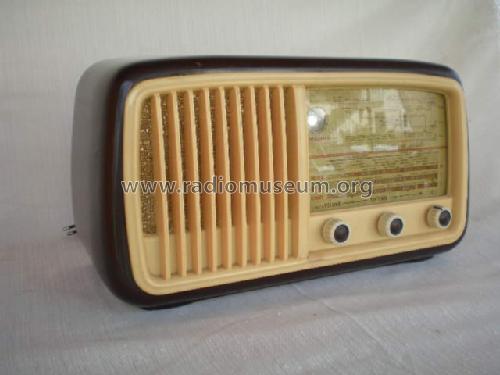

140; Marelli Radiomarelli (ID = 618002) Radio
Marelli Radiomarelli: 140 [Radio] ID = 618002 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 140, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6BE6 6BA6 6AT6 35QL6 35X4 6E5
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 125-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15.7 cm = 6.2 inch
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: 140 - Marelli Radiomarelli; Sesto
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 410 x 230 x 180 mm / 16.1 x 9.1 x 7.1 inch
Notes

Serie ANIE. Prezzo 1954: 28.200 ITL.

Net weight (2.2 lb = 1 kg) 5.8 kg / 12 lb 12.4 oz (12.775 lb)
Price in first year of sale 29'000.00 ITL
Source of data Guida Pratica Antique Radio III (2000)
Mentioned in -- Original prospect or advert (L'antenna, n.12, dicembre 1953)

Model page created by Fabio Masetti. See "Data change" for further contributors.
