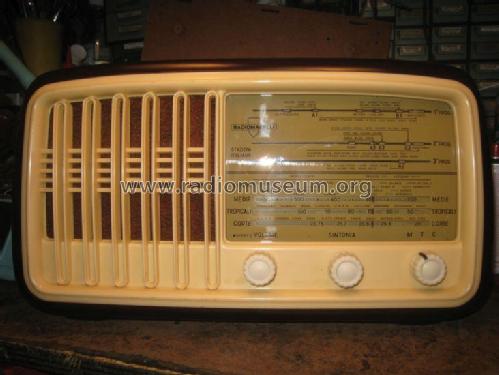

151; Marelli Radiomarelli (ID = 209769) Radio
151; Marelli Radiomarelli (ID = 209372) Radio 151; Marelli Radiomarelli (ID = 1310799) Radio
151; Marelli Radiomarelli (ID = 1310800) Radio 151; Marelli Radiomarelli (ID = 1310802) Radio
151; Marelli Radiomarelli (ID = 1920001) Radio 151; Marelli Radiomarelli (ID = 1920002) Radio
151; Marelli Radiomarelli (ID = 1920003) Radio 151; Marelli Radiomarelli (ID = 1920005) Radio
151; Marelli Radiomarelli (ID = 1920006) Radio 151; Marelli Radiomarelli (ID = 1920007) Radio
Use red slider bar for more.
151; Marelli Radiomarelli (ID = 209372) Radio
Marelli Radiomarelli: 151 [Radio] ID = 209372 933x545
Select picture or schematic to display from thumbnails on the right and click for download.
For model 151, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50B5 35X4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1.3 W (unknown quality)
from Radiomuseum.org Model: 151 - Marelli Radiomarelli; Sesto
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 410 x 230 x 180 mm / 16.1 x 9.1 x 7.1 inch
Notes Gamme d'onda: medie, corte, tropicali.
Wave bands: BC, SW, tropical.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 23'950.00 ITL
Collectors' prices
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in Catalogo ANIE (1955-56)
Literature/Schematics (1) -- Schematic

Model page created by a member from I. See "Data change" for further contributors.
