- Country
- Italy
- Manufacturer / Brand
- Marelli (Radiomarelli); Sesto San Giovanni (MI)
- Year
- 1978 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 205886
- Number of Transistors
- 5
- Semiconductors
- TBA820
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

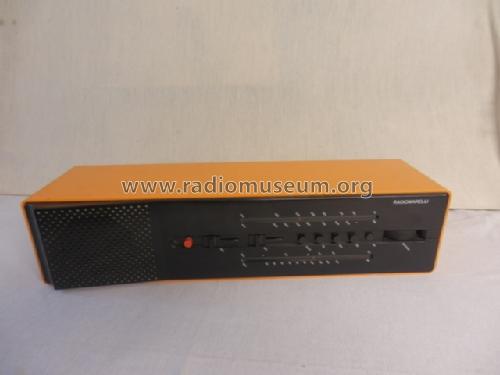

- Model: 579 - Marelli Radiomarelli; Sesto
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 480 x 110 x 140 mm / 18.9 x 4.3 x 5.5 inch
- Notes
-
Presenti anche 10 diodi.
See also a similar Radiomarelli model with unknown model designation. Maybe only the face plate differs, but the circuitry might be the same.
- Author
- Model page created by Pasquale Baiocato. See "Data change" for further contributors.
