8A28; Marelli Radiomarelli (ID = 108961) Radio

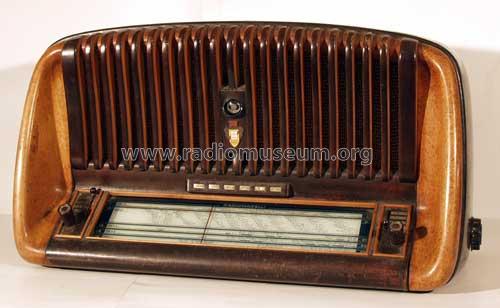

Marelli Radiomarelli: 8A28 [Radio] ID = 108961 500x308
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8A28, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6K7 6SA7 6BN8-octal 6J7 6E5 6J7 6V6 6V6 5X4
Main principle Superhet with RF-stage
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 100-110; 115-125; 125-135; 150-160; 175-190; 210-220 Volt
Loudspeaker 2 Loudspeakers / Ø 25 cm = 9.8 inch
Power out
from Radiomuseum.org Model: 8A28 - Marelli Radiomarelli; Sesto
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 785 x 410 x 315 mm / 30.9 x 16.1 x 12.4 inch
Notes

Gamme d'onda: 3xOC, OM, OL.

Wave bands: 3xSW, BC, LW.

Lo schema originale riporta l'occhio magico 6E5G. E' indicata la possibilità di usare la 6G5 spostando il collegamento di griglia sul terminale 1 della seconda MF.

Commutatore di tono a 3 posizioni: Musica - Tono medio - Voce.
Commutatore di selettività a 4 posizioni: Stazioni Locali - Potenti - Lontane - Interferite.

Source of data Guida Pratica Antique Radio III (2000)
Literature/Schematics (1) Il Radio Libro, (Ravalico) 8.Ed.

Model page created by Rino Ferro † 2008. See "Data change" for further contributors.
