9U65M; Marelli Radiomarelli (ID = 1617833) Radio
Marelli Radiomarelli: 9U65M [Radio] ID = 1617833 900x501
Select picture or schematic to display from thumbnails on the right and click for download.
For model 9U65M, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7GT 12SK7GT 12SQ7GT 50L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz

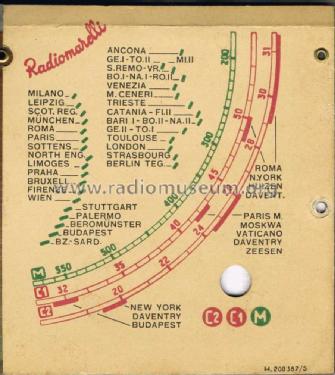

Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 125; 135; 160; 175 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: 9U65M - Marelli Radiomarelli; Sesto
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 250 x 130 x 90 mm / 9.8 x 5.1 x 3.5 inch
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Collectors' prices
Source of data Guida Pratica Antique Radio III (2000)
Mentioned in Collezione di Schemi, Scuola Radio Elettra 1953 (pag. 96-97)
Literature/Schematics (1) Riparazioni - Scuola Radio Elettra (pag. M32-M33)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
