AP10M

AP10M; Marelli Radiomarelli (ID = 1763619) Ampl/Mixer AP10M; Marelli Radiomarelli (ID = 1763620) Ampl/Mixer

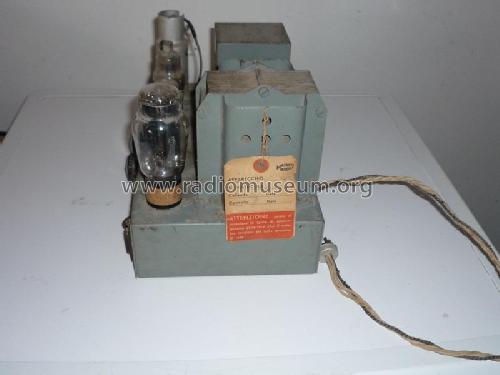

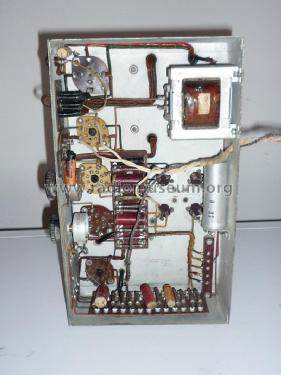

AP10M; Marelli Radiomarelli (ID = 1763624) Ampl/Mixer AP10M; Marelli Radiomarelli (ID = 1763625) Ampl/Mixer
Use red slider bar for more.
AP10M; Marelli Radiomarelli (ID = 1763619) Ampl/Mixer
Marelli Radiomarelli: AP10M [Ampl/Mixer] ID = 1763619 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model AP10M, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1942 Category: Audio Amplifier or -mixer
Valves / Tubes 5: 6J7 79 6V6 6V6 5Z3
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 100-110; 115-125; 125-135; 135-150; 175-190; 210-220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 12 W (undistorted)
from Radiomuseum.org Model: AP10M - Marelli Radiomarelli; Sesto
Material Metal case
Dimensions (WHD) 310 x 190 x 220 mm / 12.2 x 7.5 x 8.7 inch
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)

Model page created by Lorenzo Guadagnucci. See "Data change" for further contributors.
