• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73150

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 58 58 56 58 58 56 56 145 145 180

• Main principle
• Superheterodyne (common); ZF/IF 150 kHz

• Tuned circuits
• 10 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110, 160, 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

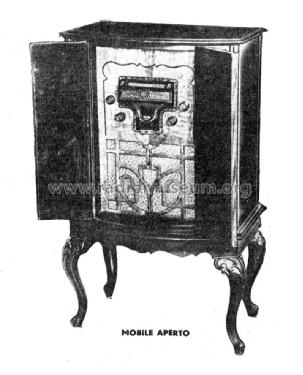

• Model: Argeste - Marelli Radiomarelli; Sesto

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Due altoparlanti elettrodinamici di diverso diametro per le frequenze basse e medio/alte. Lo stesso modello, dotato di giradischi, diventa Fonargeste.

  Two field coil loudspeakers.

• Price in first year of sale
• 3,200.00 ITL

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• La moderna Supereterodina, Ravalico, 1938 (pag. 371)

• Literature/Schematics (1)
• -- Schematic

• Literature/Schematics (2)
• -- Schematic (Il Manuale del Radiomeccanico G.B. Angeletti – Radio Industria – 1945)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
