Domus RD191

Domus RD191; Marelli Radiomarelli (ID = 674111) Radio

Domus RD191; Marelli Radiomarelli (ID = 674116) Radio

Domus RD191; Marelli Radiomarelli (ID = 674118) Radio
Domus RD191; Marelli Radiomarelli (ID = 333188) Radio Domus RD191; Marelli Radiomarelli (ID = 963184) Radio

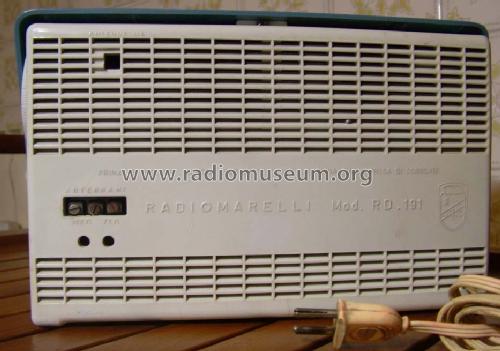

Domus RD191; Marelli Radiomarelli (ID = 963185) Radio Domus RD191; Marelli Radiomarelli (ID = 1229684) Radio
Domus RD191; Marelli Radiomarelli (ID = 1229685) Radio
Use red slider bar for more.
Domus RD191; Marelli Radiomarelli (ID = 333188) Radio
Marelli Radiomarelli: Domus RD191 [Radio] ID = 333188 901x610
Select picture or schematic to display from thumbnails on the right and click for download.
For model Domus RD191, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BA6 12AT7 12AJ8 19T8 35QL6 E250C85
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Domus RD191 - Marelli Radiomarelli; Sesto
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 280 x 170 x 120 mm / 11 x 6.7 x 4.7 inch
Notes

Serie ANIE MF. Altoparlante magnetodinamico ellittico di dimensioni 140 x 90 mm. 1 raddrizzatore metallico.

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Price in first year of sale 28,500.00 ITL
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in -- Original prospect or advert
Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.
