Faltusa Sopramobile 41 Lusso

Faltusa Sopramobile 41; Marelli Radiomarelli (ID = 36794) Radio
Faltusa Sopramobile 41; Marelli Radiomarelli (ID = 100391) Radio Faltusa Sopramobile 41; Marelli Radiomarelli (ID = 168006) Radio
Faltusa Sopramobile 41; Marelli Radiomarelli (ID = 168008) Radio Faltusa Sopramobile 41; Marelli Radiomarelli (ID = 150451) Radio
Faltusa Sopramobile 41; Marelli Radiomarelli (ID = 168007) Radio Faltusa Sopramobile 41; Marelli Radiomarelli (ID = 168009) Radio
Faltusa Sopramobile 41; Marelli Radiomarelli (ID = 168010) Radio Faltusa Sopramobile 41; Marelli Radiomarelli (ID = 168011) Radio
Faltusa Sopramobile 41; Marelli Radiomarelli (ID = 609700) Radio Faltusa Sopramobile 41; Marelli Radiomarelli (ID = 609702) Radio
Use red slider bar for more.
Faltusa Sopramobile 41; Marelli Radiomarelli (ID = 100391) Radio

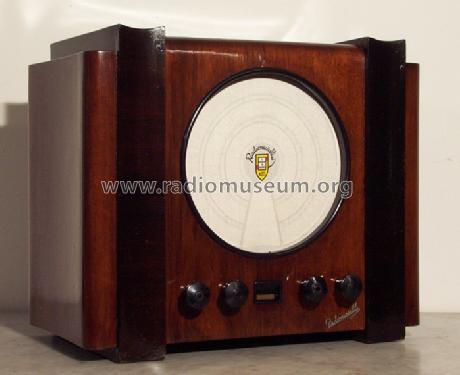

Marelli Radiomarelli: Faltusa Sopramobile 41 [Radio] ID = 100391 500x458
Select picture or schematic to display from thumbnails on the right and click for download.
For model Faltusa Sopramobile 41 Lusso, Marelli (Radiomarelli); Sesto San Giovanni (MI):
Radiomarelli Faltusa Lusso soprammobile.

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 78 75 41 80
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 135-235 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Faltusa Sopramobile 41 [Lusso] - Marelli Radiomarelli; Sesto
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 430 x 370 x 255 mm / 16.9 x 14.6 x 10 inch
Notes Indicatore ottico di sintonia. Scala parlante "magica" a tre colori retroilluminata. La variante "Faltusa Lusso" differisce per il mobile dalla versione normale.

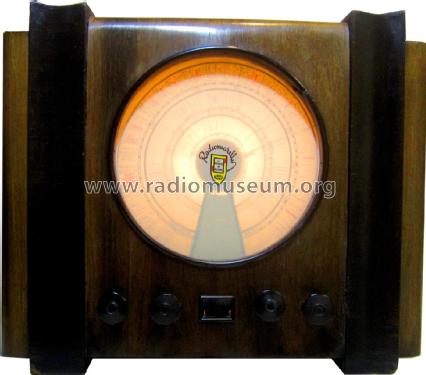

Meter. "Magic" tuning dial: back-lit in 3 colors. This variant "Lusso" features a different wooden case than the normal one.
Price in first year of sale 1,275.00 ITL
Collectors' prices
Source of data Guida Pratica Antique Radio II (2000)
Mentioned in La moderna Supereterodina, Ravalico, 1938 (pag. 372)
Literature/Schematics (1) Il Radio Libro, (Ravalico) 5.Edizione 1939

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Marelli (Radiomarelli); Sesto San Giovanni (MI)
Here you find 425 models, 316 with images and 244 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
