Fido 9U45

Fido 9U45; Marelli Radiomarelli (ID = 52368) Radio Fido 9U45; Marelli Radiomarelli (ID = 52369) Radio
Use red slider bar for more.
Fido 9U45; Marelli Radiomarelli (ID = 52368) Radio

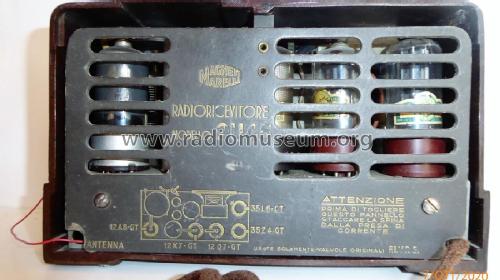

Marelli Radiomarelli: Fido 9U45 [Radio] ID = 52368 933x609
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fido 9U45, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1939 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12A8GT 12K7GT 12Q7GT 35L6GT 35Z4GT
Main principle Super-Heterodyne (Super in general); 1 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Fido 9U45 - Marelli Radiomarelli; Sesto
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 210 x 130 x 120 mm / 8.3 x 5.1 x 4.7 inch
External source of data Volker Jeschkeit

Model page created by Volker Jeschkeit. See "Data change" for further contributors.
