Filomele Tipo 34

Filomele Tipo 34; Marelli Radiomarelli (ID = 417192) Radio

Filomele Tipo 34; Marelli Radiomarelli (ID = 1403526) Radio
Filomele Tipo 34; Marelli Radiomarelli (ID = 718800) Radio Filomele Tipo 34; Marelli Radiomarelli (ID = 718801) Radio
Filomele Tipo 34; Marelli Radiomarelli (ID = 718802) Radio Filomele Tipo 34; Marelli Radiomarelli (ID = 718803) Radio
Filomele Tipo 34; Marelli Radiomarelli (ID = 718804) Radio Filomele Tipo 34; Marelli Radiomarelli (ID = 921401) Radio
Filomele Tipo 34; Marelli Radiomarelli (ID = 921402) Radio Filomele Tipo 34; Marelli Radiomarelli (ID = 921403) Radio
Filomele Tipo 34; Marelli Radiomarelli (ID = 1529050) Radio
Use red slider bar for more.
Filomele Tipo 34; Marelli Radiomarelli (ID = 718800) Radio
Marelli Radiomarelli: Filomele Tipo 34 [Radio] ID = 718800 620x932
Select picture or schematic to display from thumbnails on the right and click for download.
For model Filomele Tipo 34, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1932–1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 51 51 24 PZ 80
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast only (MW).
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 125/160 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Filomele Tipo 34 - Marelli Radiomarelli; Sesto
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Dimensions (WHD) 520 x 920 x 325 mm / 20.5 x 36.2 x 12.8 inch
Notes Radiofonografo. Come si può osservare dalle tre foto che non appartengono all'esemplare pubblicato, esistono versioni di "Filomele" che hanno il condensatore variabile posizionato verticalmente.
Price in first year of sale 1,850.00 ITL
Source of data Guida Pratica Antique Radio III (2000)
Mentioned in -- Original prospect or advert

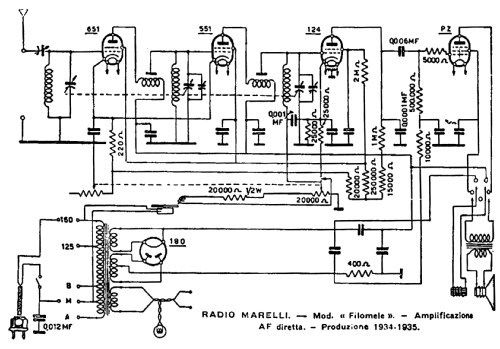

Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.
