Mizar Sopramobile

Mizar ; Marelli Radiomarelli (ID = 37804) Radio
Mizar ; Marelli Radiomarelli (ID = 2431073) Radio Mizar ; Marelli Radiomarelli (ID = 355814) Radio
Mizar ; Marelli Radiomarelli (ID = 355815) Radio Mizar ; Marelli Radiomarelli (ID = 355816) Radio
Mizar ; Marelli Radiomarelli (ID = 1606086) Radio Mizar ; Marelli Radiomarelli (ID = 1606087) Radio
Mizar ; Marelli Radiomarelli (ID = 1606088) Radio Mizar ; Marelli Radiomarelli (ID = 1606089) Radio
Mizar ; Marelli Radiomarelli (ID = 1606090) Radio
Use red slider bar for more.
Mizar ; Marelli Radiomarelli (ID = 2431073) Radio
Marelli Radiomarelli: Mizar [Radio] ID = 2431073 933x654
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mizar Sopramobile, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 78 6A7 78 78 6B7 6L6 5Z3
Main principle Superhet with RF-stage; ZF/IF 450 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 135; 160; 190; 230; 260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Mizar [Sopramobile] - Marelli Radiomarelli; Sesto
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 470 x 590 x 420 mm / 18.5 x 23.2 x 16.5 inch
Notes

Indicatore di sintonia a proiezione d'ombra. Regolatore di tensione GR180.
Shadow projection tuning indicator. Voltage regulator: GR180.

Price in first year of sale 2'800.00 ITL
Source of data Guida Pratica Antique Radio II (2000)
Mentioned in -- Original prospect or advert (L'Antenna, n. 2, gennaio 1938; n.18, settembre 1937)
Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

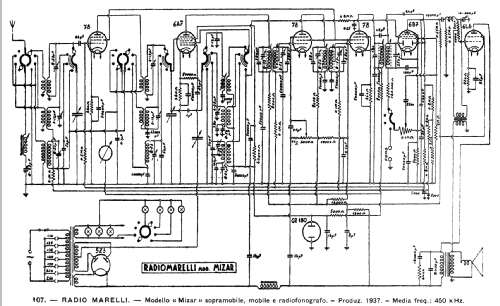

Literature/Schematics (2) -- Schematic (Il Manuale del Radiomeccanico G.B. Angeletti – Radio Industria – 1945)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
