• Year
  • 1932
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 88440

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 160; 220; 250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

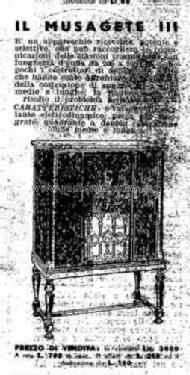

  • Model: Musagete III - Marelli Radiomarelli; Sesto
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Price in first year of sale
  • 3,000.00 ITL
  • Literature/Schematics (1)
  • -- Schematic
  • Literature/Schematics (2)
  • -- Schematic (La Riparazione degli Apparecchi Radio, Delforno - Colciago, Italy 1941)
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
