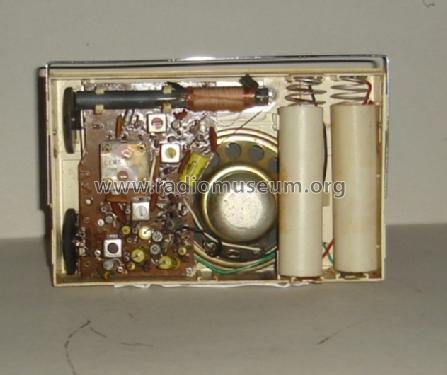

De Luxe Personal ; Marelli Radiomarelli (ID = 677395) Radio De Luxe Personal ; Marelli Radiomarelli (ID = 1190924) Radio
De Luxe Personal ; Marelli Radiomarelli (ID = 1190925) Radio
Use red slider bar for more.
De Luxe Personal ; Marelli Radiomarelli (ID = 677394) Radio
Marelli Radiomarelli: De Luxe Personal [Radio] ID = 677394 670x698
Select picture or schematic to display from thumbnails on the right and click for download.
For model De Luxe Personal, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1966 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Super-Heterodyne (Super in general)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: De Luxe Personal - Marelli Radiomarelli; Sesto
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 178 x 110 x 45 mm / 7 x 4.3 x 1.8 inch
Notes Onde medie. Frequenzbereich: 550 - 1600 KHz, Skala mit Stationsnamen
Net weight (2.2 lb = 1 kg) 0.550 kg / 1 lb 3.4 oz (1.211 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
