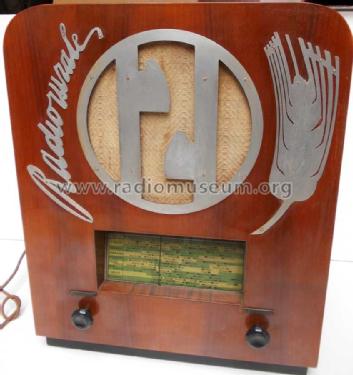

Radiorurale 18

• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1937 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72482

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

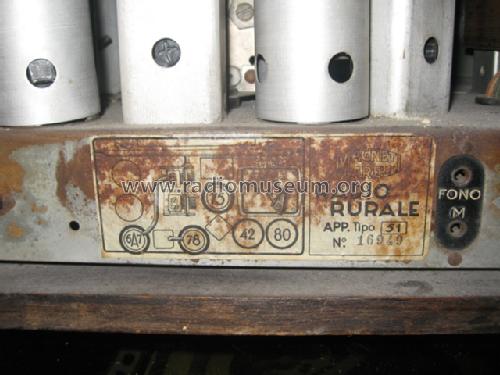

• Valves / Tubes
• 6A7 78 75 41 80

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiorurale 18 - Marelli Radiomarelli; Sesto

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 490 x 400 x 260 mm / 19.3 x 15.7 x 10.2 inch

• Notes
• Ricevitore propagandistico venduto sottocosto in seguito all'istituzione dell'Ente Radio Rurale (1933)

• Price in first year of sale
• 600.00 ITL

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
