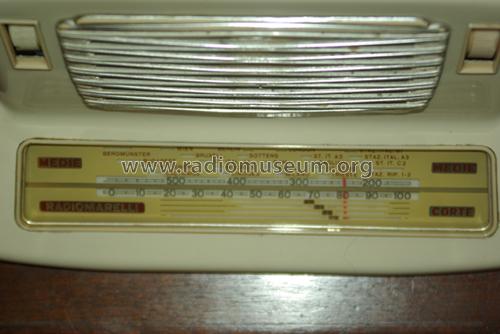

Fido RD133

Fido RD133; Marelli Radiomarelli (ID = 339185) Radio
Fido RD133; Marelli Radiomarelli (ID = 158288) Radio Fido RD133; Marelli Radiomarelli (ID = 323683) Radio
Fido RD133; Marelli Radiomarelli (ID = 323684) Radio Fido RD133; Marelli Radiomarelli (ID = 323685) Radio
Fido RD133; Marelli Radiomarelli (ID = 323687) Radio Fido RD133; Marelli Radiomarelli (ID = 323688) Radio
Fido RD133; Marelli Radiomarelli (ID = 1170116) Radio Fido RD133; Marelli Radiomarelli (ID = 1170117) Radio
Fido RD133; Marelli Radiomarelli (ID = 1170119) Radio Fido RD133; Marelli Radiomarelli (ID = 1170120) Radio
Use red slider bar for more.
Fido RD133; Marelli Radiomarelli (ID = 158288) Radio
Marelli Radiomarelli: Fido RD133 [Radio] ID = 158288 717x609
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fido RD133, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50B5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Line (AC, UC or DC not known) / 125; 135; 160; 175 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2.2 W (unknown quality)
from Radiomuseum.org Model: Fido RD133 - Marelli Radiomarelli; Sesto
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 260 x 140 x 170 mm / 10.2 x 5.5 x 6.7 inch
Notes Alimentazione con riduttore esterno. Mobile con diverse varianti di colore. Per la sua particolare forma è nota tra i collezionisti come "Fido a fisarmonica".
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Price in first year of sale 33'919.00 ITL
Collectors' prices
Source of data Guida Pratica Antique Radio II (2000)
Mentioned in -- Original prospect or advert (L'antenna, n.12, dicembre 1953)

Model page created by Federico Valdameri † 7.2015. See "Data change" for further contributors.
