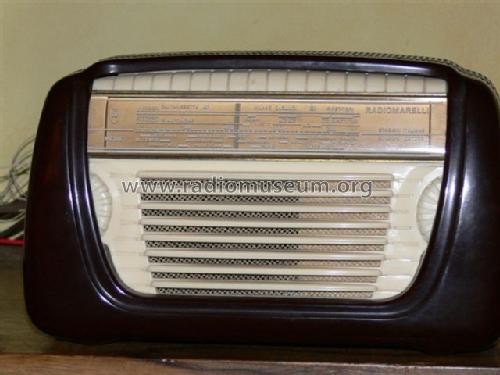

Fido RD155; Marelli Radiomarelli (ID = 151625) Radio Fido RD155; Marelli Radiomarelli (ID = 276769) Radio
Fido RD155; Marelli Radiomarelli (ID = 695027) Radio Fido RD155; Marelli Radiomarelli (ID = 821455) Radio
Fido RD155; Marelli Radiomarelli (ID = 1217061) Radio Fido RD155; Marelli Radiomarelli (ID = 1217064) Radio
Use red slider bar for more.
Fido RD155; Marelli Radiomarelli (ID = 821454) Radio
Marelli Radiomarelli: Fido RD155 [Radio] ID = 821454 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fido RD155, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50B5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110/125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2.2 W (unknown quality)
from Radiomuseum.org Model: Fido RD155 - Marelli Radiomarelli; Sesto
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 230 x 145 x 105 mm / 9.1 x 5.7 x 4.1 inch
Notes 4 varianti di colore. Prezzo variante color avorio: 20.650 ITL.
Net weight (2.2 lb = 1 kg) 1.6 kg / 3 lb 8.4 oz (3.524 lb)
Price in first year of sale 19,200.00 ITL
Collectors' prices
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in Catalogo ANIE (1955-56)
Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.
