RD207

RD207; Marelli Radiomarelli (ID = 674120) Radio
RD207; Marelli Radiomarelli (ID = 503653) Radio
Use red slider bar for more.
RD207; Marelli Radiomarelli (ID = 503653) Radio

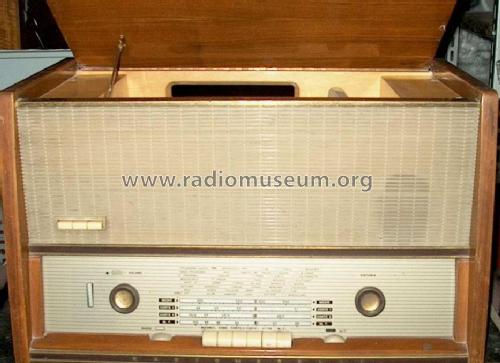

Marelli Radiomarelli: RD207 [Radio] ID = 503653 933x678
Select picture or schematic to display from thumbnails on the right and click for download.
For model RD207, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 12AT7 6AJ8 6BA6 6T8 EM84 12AX7 6BQ5 5Y3
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: RD207 - Marelli Radiomarelli; Sesto
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 630 x 380 x 375 mm / 24.8 x 15 x 14.8 inch
Source of data Guida Pratica Antique Radio II (2000)

Model page created by Federico Valdameri † 7.2015. See "Data change" for further contributors.
