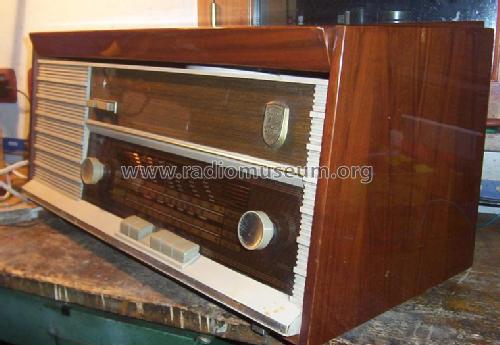

RD238; Marelli Radiomarelli (ID = 698742) Radio RD238; Marelli Radiomarelli (ID = 698741) Radio
RD238; Marelli Radiomarelli (ID = 698746) Radio RD238; Marelli Radiomarelli (ID = 1261021) Radio
RD238; Marelli Radiomarelli (ID = 1261022) Radio
Use red slider bar for more.
RD238; Marelli Radiomarelli (ID = 698737) Radio
Marelli Radiomarelli: RD238 [Radio] ID = 698737 809x432
Select picture or schematic to display from thumbnails on the right and click for download.
For model RD238, Marelli (Radiomarelli); Sesto San Giovanni (MI):
Vista frontale (S.Baldi)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1962–1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6AQ8 6AJ8 6BA6 6AK8 EM84 6BQ5 5Y3GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 8 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer); Wired Wireless Receiver (RF!)
Power type and voltage Alternating Current supply (AC) / 125; 140; 160; 220; 260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: RD238 - Marelli Radiomarelli; Sesto
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 645 x 305 x 300 mm / 25.4 x 12 x 11.8 inch
Notes

Giradischi a 4 velocità con testina piezoelettrica. Prezzo 1965: 67.500 ITL. Radiofonografo che permette, sulle onde lunghe, anche la ricezione dei canali radiofonici della filodiffusione; i sei canali della filodiffusione sono evidenziati sulla scala parlante.

Net weight (2.2 lb = 1 kg) 14.8 kg / 32 lb 9.6 oz (32.599 lb)
Source of data Guida Pratica Antique Radio IV (2001)
Mentioned in Catalogo Radiomarelli 1965, mod. RML 126 12/64

Model page created by Salvatore Baldi † 2017. See "Data change" for further contributors.
