RD-208-X

RD-208-X; Marelli Radiomarelli (ID = 1741272) Radio
RD-208-X; Marelli Radiomarelli (ID = 1818948) Radio RD-208-X; Marelli Radiomarelli (ID = 1818949) Radio
RD-208-X; Marelli Radiomarelli (ID = 1818951) Radio RD-208-X; Marelli Radiomarelli (ID = 1818953) Radio
RD-208-X; Marelli Radiomarelli (ID = 1818954) Radio
Use red slider bar for more.

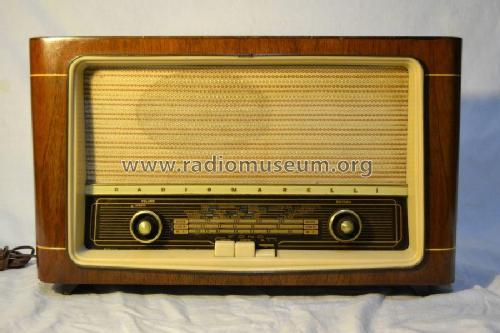

RD-208-X; Marelli Radiomarelli (ID = 1818948) Radio
Marelli Radiomarelli: RD-208-X [Radio] ID = 1818948 900x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model RD-208-X, Marelli (Radiomarelli); Sesto San Giovanni (MI)

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1959 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12AT7 6AJ8 6BA6 6AK6 6BQ5 6V4
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz; 2 AF stage(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RD-208-X - Marelli Radiomarelli; Sesto
Mentioned in -- Schematic

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
