RV501X

RV501X; Marelli Radiomarelli (ID = 1825167) Television RV501X; Marelli Radiomarelli (ID = 1825168) Television
RV501X; Marelli Radiomarelli (ID = 1825169) Television
Use red slider bar for more.

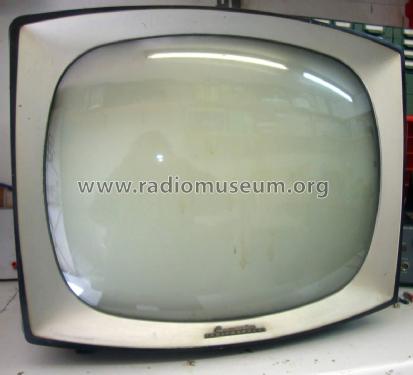

RV501X; Marelli Radiomarelli (ID = 1825167) Television
Marelli Radiomarelli: RV501X [Television] ID = 1825167 1200x1087
Select picture or schematic to display from thumbnails on the right and click for download.
For model RV501X, Marelli (Radiomarelli); Sesto San Giovanni (MI):
Photo by courtesy of A.Cottone

Country:  Italy
Manufacturer / Brand:  Marelli (Radiomarelli); Sesto San Giovanni (MI)
Year: 1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 16: 6BK7A 6U8 6CB6 6CB6 6AM8 6AU8 6AU6 6AU6 6T8 6BQ5 6CS6 6BM8 6CG7 6DQ6A 1B3GT 6AX4GT 21CEP4
Main principle Superhet with RF-stage; ZF/IF 45750 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 125; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.2 W (max.)
from Radiomuseum.org Model: RV501X - Marelli Radiomarelli; Sesto
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes
  • Tubo R.C. tipo 21CEP4
  • Consumo 160 W
Mentioned in -- Schematic (Radiomarelli, Schemario Radioricevitori e Televisori, 1963)
Literature/Schematics (1) - - Manufacturers Literature ("Schemario Radiomarelli" 1963 pag. 91)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
