• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106448

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 78 75 41 80

• Main principle
• Superheterodyne (common); ZF/IF 125 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 150; 160; 170; 200; 220; Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 25 cm = 9.8 inch

• Material
• Wooden case

• from Radiomuseum.org

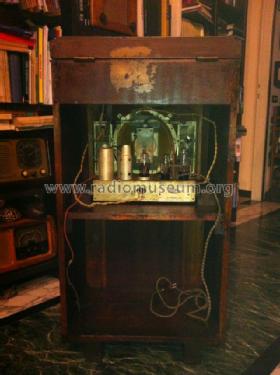

• Model: Timele 20 - Marelli Radiomarelli; Sesto

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 520 x 970 x 380 mm / 20.5 x 38.2 x 15 inch

• Notes
• Indicatore di sintonia realizzato con milliamperometro.

• Source of data
• Guida Pratica Antique Radio II (2000)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
