• Year
  • 1961–1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 120090

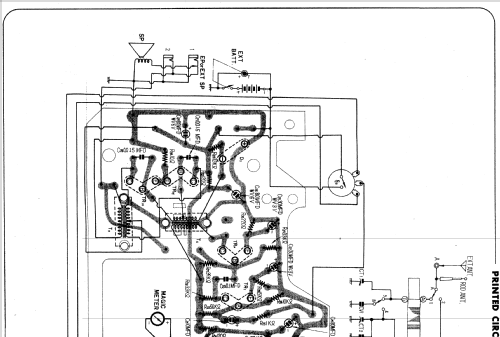

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Batteries / addl. power jack / C: 4 x 1,5 / DC 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
  • Power out
  • 0.25 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: National 2-Band 10-Transistor T-63 T - Panasonic, Matsushita,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 8.875 x 5 x 2.125 mm / 0.3 x 0.2 x 0.1 inch
  • Notes

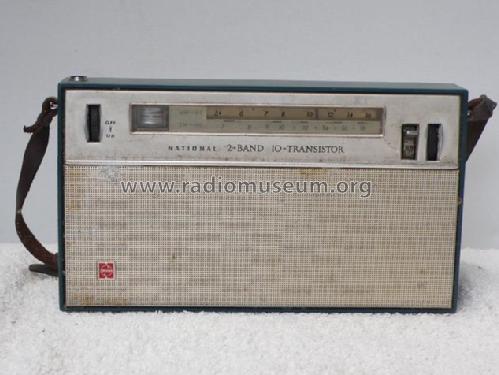

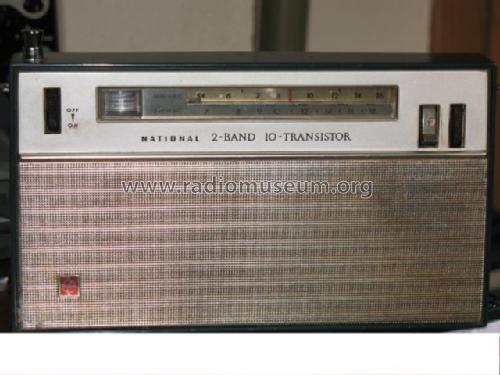

  • National T-63T Portable Radio

    Dual wave ten-transistor, two diode portable radio with built-in RF stage for distant reception. Built-in ferrite rod antenna and 36" telescopic whip antenna. Built-in meter indicates both fine tuning and battery life.

    Batteries four x UM2 1.5V cells. Frequency range: BC, 540-1600 kC/s (kHz). SW, 7-18 MC/s (MHz).

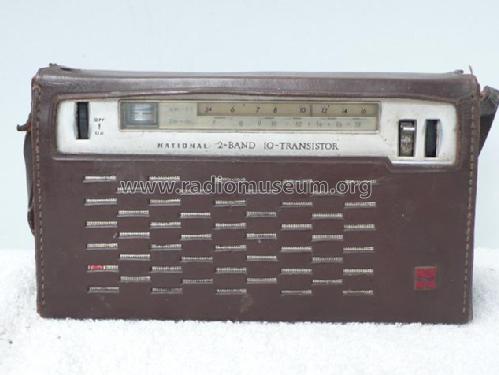

    Accessories: leather case, straps, earphone and wire aerial. (MINGAY'S PRICE SERVICE)

    See also T-63 H with different SW band reception.

    This model was sold in Australia between 1961 & 1963 for £53/11/-. Weight and price includes batteries.

  • Net weight (2.2 lb = 1 kg)
  • 2 lb 8 oz (2.5 lb) / 1.135 kg
  • Literature/Schematics (1)
  • - - Manufacturers Literature (National Radio Service Note)
  • Author
  • Model page created by Jose Duarte Costa. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model National 2-Band 10-Transistor is part of the collections of the following members.

 Forum

Forum contributions about this model: Panasonic,: National 2-Band 10-Transistor T-63 T

Threads: 1 | Posts: 1

I would like to add extra details for the National Panasonic model T-63 T. The transistors are as follows: 2SA103, 2SA103, 2SA101, 2SA103, 2SB173, 2SB171, MA23, 2SB171, 2SB176, and 2SB176. The unit has an 85mm speaker and weighs 1.16Kg without batteries.

Roger Brinkman, 30.Dec.09
