7528/4L

7528/4L; MBLE, Manufacture (ID = 1225610) Kit

7528/4L; MBLE, Manufacture (ID = 1593324) Kit

7528/4L; MBLE, Manufacture (ID = 1593326) Kit
7528/4L; MBLE, Manufacture (ID = 74709) Kit 7528/4L; MBLE, Manufacture (ID = 74712) Kit
7528/4L; MBLE, Manufacture (ID = 74706) Kit 7528/4L; MBLE, Manufacture (ID = 74708) Kit

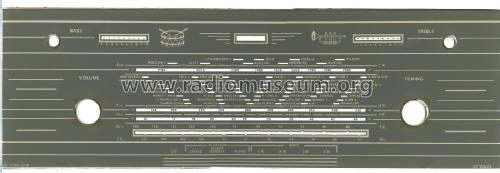

7528/4L; MBLE, Manufacture (ID = 2064012) Kit
Use red slider bar for more.
7528/4L; MBLE, Manufacture (ID = 74709) Kit
MBLE, Manufacture: 7528/4L [Kit] ID = 74709 933x537
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7528/4L, MBLE, Manufacture Belge ... - see also MAZDA and ADZAM

Country:  Belgium
Manufacturer / Brand:  MBLE, Manufacture Belge ... - see also MAZDA and ADZAM
Year: 1962 Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 9: ECC85 ECH81 EF89 EABC80 EM84 EBC81 EL84 EL84 EZ81
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 90-220 Volt
Loudspeaker 2 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: 7528/4L - MBLE, Manufacture Belge ... -
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes

Stereophonic AF amplifier, channels can be reversed or switched to monophonic mode.

The kit was sold without housing, this could be purchased separately.
The given price is for the kit, without speakers and without wooden case

Price in first year of sale 2'975.00 BEF

Model page created by Georges Van Campenhout. See "Data change" for further contributors.
