M101RG
McMichael Radio Ltd.; Slough
- Country
- Great Britain (UK)
- Manufacturer / Brand
- McMichael Radio Ltd.; Slough
- Year
- 1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 104524
-
- alternative name: McMichael, Leslie
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: M101RG - McMichael Radio Ltd.; Slough

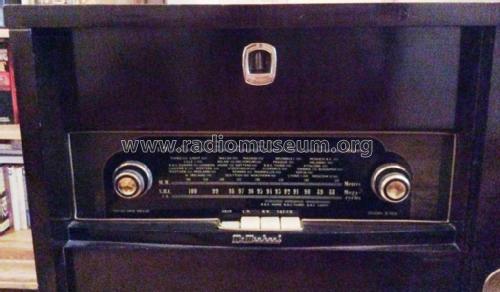

- Shape
- Console with Push Buttons.
- Notes
-
Fitted with a BSR UA8 four speed autochanger
- Mentioned in
- -- Original-techn. papers.

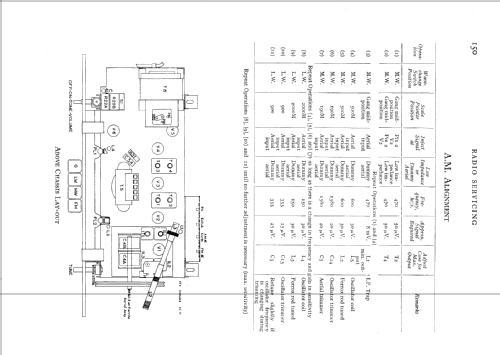

- Literature/Schematics (1)
- Radio And Television Servicing books (R&TVS)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
