• Year
  • 1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 169162
    • alternative name: McMichael, Leslie

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 190-250 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: MS204 - McMichael Radio Ltd.; Slough
  • Shape
  • Console with any shape - in general
  • Notes

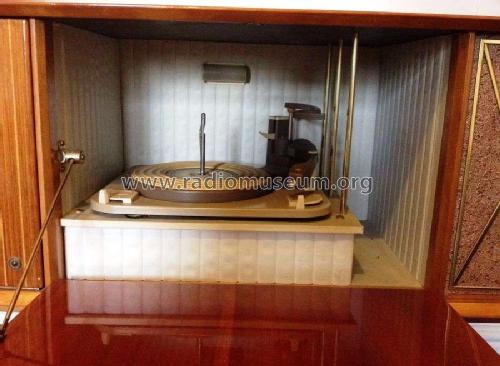

  • Stereo radiogram fitted with BSR type UR14 four speed changer unit, with TC8S cartridge. Similar models MS205, Sobell SG671, GEC G971. Price 73gns.
  • Price in first year of sale
  • 77.00 GBP
  • Source of data
  • -- Schematic
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
