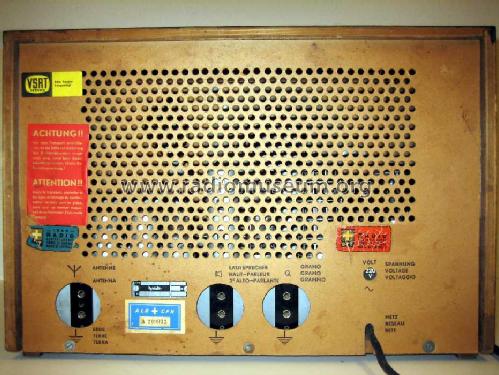

M137A; Mediator; La Chaux- (ID = 289834) Radio M137A; Mediator; La Chaux- (ID = 289832) Radio
M137A; Mediator; La Chaux- (ID = 289833) Radio M137A; Mediator; La Chaux- (ID = 814317) Radio
Use red slider bar for more.

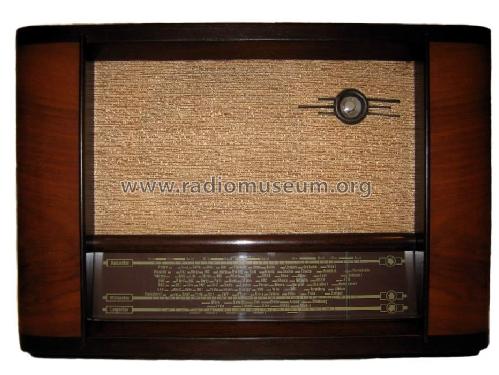

M137A; Mediator; La Chaux- (ID = 289831) Radio
Mediator; La Chaux-: M137A [Radio] ID = 289831 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model M137A, Mediator; La Chaux-de-Fonds

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1947–1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH21 ECH21 EBL21 AZ1 EM4
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: M137A - Mediator; La Chaux-de-Fonds
Material Wooden case
Dimensions (WHD) 440 x 300 x 220 mm / 17.3 x 11.8 x 8.7 inch
Notes mit TR=Fr.620.--
Price in first year of sale 495.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.
Literature/Schematics (1) -- Schematic
