- Country
- Switzerland
- Manufacturer / Brand
- Mediator; La Chaux-de-Fonds
- Year
- 1947/1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 12372

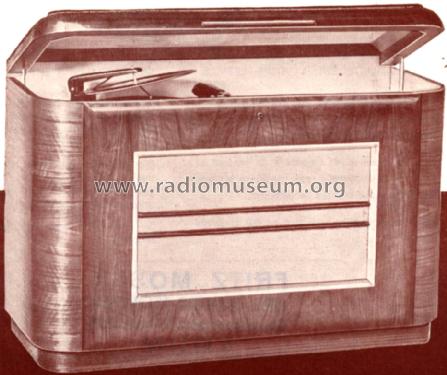

Mediator-Werbung
Mediator-Werbung
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 468 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Presumably Dynamic Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 3640 - Mediator; La Chaux-de-Fonds
- Dimensions (WHD)
- 999 x 720 x 440 mm / 39.3 x 28.3 x 17.3 inch
- Notes
- Ch=150;mit TR=1930.--
- Price in first year of sale
- 1,875.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
