37A

37A; Mediator; La Chaux- (ID = 997698) Radio 37A; Mediator; La Chaux- (ID = 997697) Radio
37A; Mediator; La Chaux- (ID = 997699) Radio 37A; Mediator; La Chaux- (ID = 1171722) Radio
37A; Mediator; La Chaux- (ID = 1797487) Radio
Use red slider bar for more.

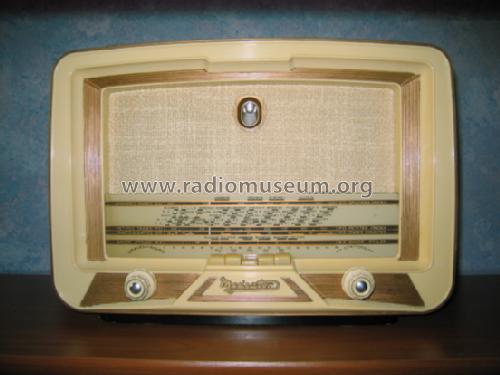

37A; Mediator; La Chaux- (ID = 997698) Radio
Mediator; La Chaux-: 37A [Radio] ID = 997698 933x641
Select picture or schematic to display from thumbnails on the right and click for download.
For model 37A, Mediator; La Chaux-de-Fonds:
Image recu de la part de M. St. Bernard

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1955 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EBF80 EBF80 EL84 EM80 EZ80
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 37A - Mediator; La Chaux-de-Fonds
Material Various materials
Shape Tablemodel, low profile (big size).
Notes Mediator 73A: Radio GO / PO / OC / BE (bande étalée 49 m) avec cadre integré.

Model page created by Martin Bösch. See "Data change" for further contributors.



All listed radios etc. from Mediator; La Chaux-de-Fonds
Here you find 349 models, 297 with images and 221 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
