M43A-04 (ohne Kurzwelle)

M43A-04 ; Mediator; La Chaux- (ID = 267815) Radio

M43A-04 ; Mediator; La Chaux- (ID = 267816) Radio
M43A-04 ; Mediator; La Chaux- (ID = 420044) Radio M43A-04 ; Mediator; La Chaux- (ID = 420045) Radio
M43A-04 ; Mediator; La Chaux- (ID = 619356) Radio M43A-04 ; Mediator; La Chaux- (ID = 1949) Radio
M43A-04 ; Mediator; La Chaux- (ID = 420040) Radio M43A-04 ; Mediator; La Chaux- (ID = 619353) Radio
M43A-04 ; Mediator; La Chaux- (ID = 619354) Radio M43A-04 ; Mediator; La Chaux- (ID = 619357) Radio
M43A-04 ; Mediator; La Chaux- (ID = 1117935) Radio
Use red slider bar for more.
M43A-04 ; Mediator; La Chaux- (ID = 420044) Radio

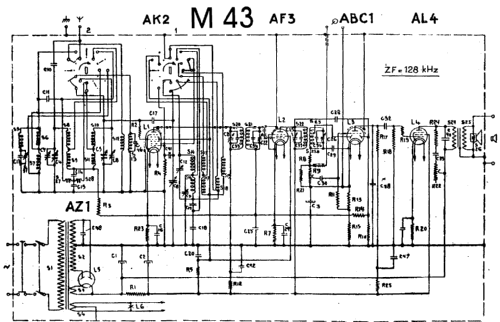

Mediator; La Chaux-: M43A-04 [Radio] ID = 420044 700x487
Select picture or schematic to display from thumbnails on the right and click for download.
For model M43A-04 (ohne Kurzwelle), Mediator; La Chaux-de-Fonds:
Mediator M43 A

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF3 ABC1 AL4 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 128 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: M43A-04 - Mediator; La Chaux-de-Fonds
Dimensions (WHD) 480 x 320 x 190 mm / 18.9 x 12.6 x 7.5 inch
Notes Linearskala oben, rundl.LS-Ausschnitt . Entspricht technisch dem in der Schweiz gebauten Philips 461A-04, hat aber anderes Gehäuse
Net weight (2.2 lb = 1 kg) 10.4 kg / 22 lb 14.5 oz (22.907 lb)
Price in first year of sale 250.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Mediator; La Chaux-de-Fonds
Here you find 347 models, 296 with images and 220 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Mediator; La Chaux-: M43A-04
Threads: 1 | Posts: 1
Hits: 1530     Replies: 0
mediator: 43A; Mediator
Gian-Fausto Balestra
15.Oct.06
  1

Mediator 43A:  Questo modello utilizza lo  stesso "schassis" della Philips modello 451A serie Simphonique "LOISIRS" Francia, monta le stesse valvole AK2-AF3-ABC1-AL4-AZ1.  Il mobile è in Bakelite.
