M50A (50A)
Use red slider bar for more.

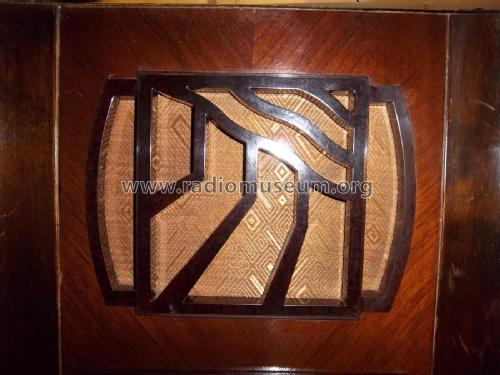

Mediator; La Chaux-: M50A [Radio] ID = 2313333 1376x1345
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1935/1936 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: AF3 AK2 AF3 ABC1 AL2 AZ1 |
|---|
| Main principle | Superhet with RF-stage; ZF/IF 115 kHz |
|---|---|
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt |
| Loudspeaker | Presumably Dynamic Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: M50A - Mediator; La Chaux-de-Fonds |
| Material | Wooden case |
| Shape | Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges. |
| Dimensions (WHD) | 440 x 525 x 285 mm / 17.3 x 20.7 x 11.2 inch |
| Net weight (2.2 lb = 1 kg) | 23.2 kg / 51 lb 1.6 oz (51.101 lb) |
| Price in first year of sale | 470.00 SFr |
| External source of data | E. Erb 3-907007-36-0 |
| Source of data | Radiokatalog Band 2, Ernst Erb |
| Circuit diagram reference | Die Tungsram-Tabellen führen das Modell auf. |
