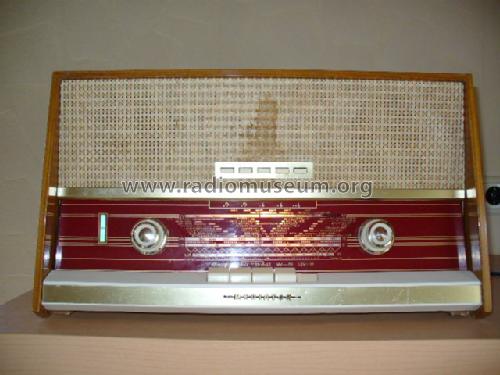

For model ID4135A, Mediator; La Chaux-de-Fonds

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF85 EABC80 EM84 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz; 1 AF stage(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: ID4135A - Mediator; La Chaux-de-Fonds
Material Wooden case
Dimensions (WHD) 500 x 280 x 210 mm / 19.7 x 11 x 8.3 inch
Notes Auffällig rote Skalenscheibe, Klangregeltasten.
Source of data - - Data from my own collection

Model page created by a member from D. See "Data change" for further contributors.
