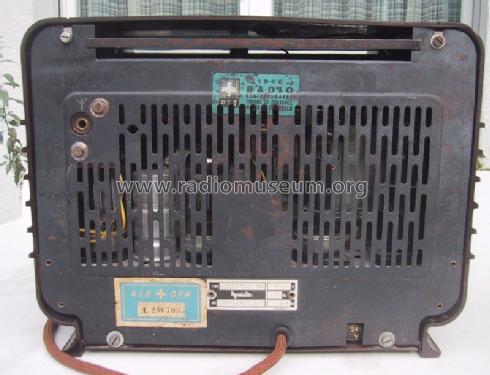

Bijou M111U-16; Mediator; La Chaux- (ID = 167762) Radio Bijou M111U-16; Mediator; La Chaux- (ID = 167761) Radio
Bijou M111U-16; Mediator; La Chaux- (ID = 550074) Radio Bijou M111U-16; Mediator; La Chaux- (ID = 814312) Radio
Use red slider bar for more.
Bijou M111U-16; Mediator; La Chaux- (ID = 550072) Radio
Mediator; La Chaux-: Bijou M111U-16 [Radio] ID = 550072 704x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bijou M111U-16, Mediator; La Chaux-de-Fonds:
Eigenes Bild.

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1946–1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH21 UCH21 UBL21 UY1N
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Bijou M111U-16 - Mediator; La Chaux-de-Fonds
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 270 x 152 x 192 mm / 10.6 x 6 x 7.6 inch
Notes 2 Skalenlampen: Philips 8095 D-99 (19V; 97mA) In einigen Prospekten figuriert ein Preis von 315.- SFr.
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Price in first year of sale 290.00 SFr
Source of data -- Original prospect or advert
