M12A

M12A; Mediator; La Chaux- (ID = 680441) Radio M12A; Mediator; La Chaux- (ID = 680442) Radio
M12A; Mediator; La Chaux- (ID = 680443) Radio M12A; Mediator; La Chaux- (ID = 680444) Radio
M12A; Mediator; La Chaux- (ID = 734529) Radio M12A; Mediator; La Chaux- (ID = 734531) Radio
M12A; Mediator; La Chaux- (ID = 734533) Radio
Use red slider bar for more.
M12A; Mediator; La Chaux- (ID = 680441) Radio
Mediator; La Chaux-: M12A [Radio] ID = 680441 759x537
Select picture or schematic to display from thumbnails on the right and click for download.
For model M12A, Mediator; La Chaux-de-Fonds:
Kaunas Lithuania

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1938 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: EK2 EF9 EBL1 AZ1
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 127, 220, 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: M12A - Mediator; La Chaux-de-Fonds
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 500 x 290 x 230 mm / 19.7 x 11.4 x 9.1 inch

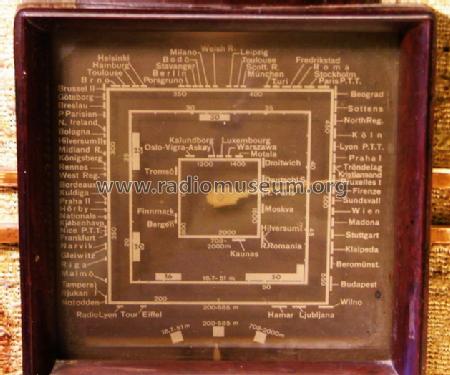

Notes Coverage LW (708-2000 m), MW (200-585 m), SW (16,7-51 m) band.

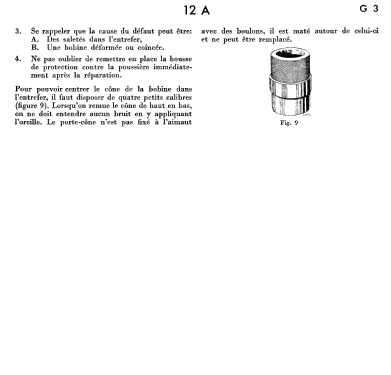

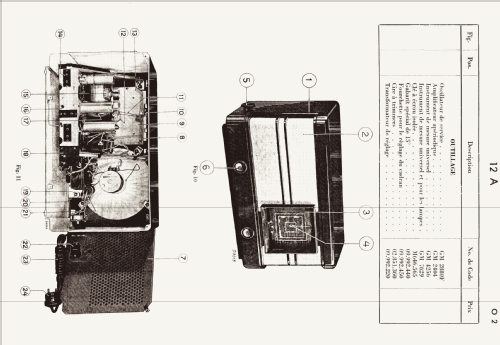

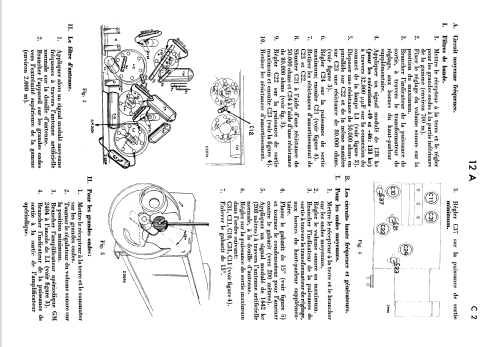

Literature/Schematics (1) -- Schematic

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from Mediator; La Chaux-de-Fonds
Here you find 347 models, 296 with images and 220 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
