For model M94A, Mediator; La Chaux-de-Fonds:
Kaunas, Lithuania

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1939 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 EF9 EBL1 AZ1
Main principle Super-Heterodyne (Super in general); 1 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 145, 200, 220, 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: M94A - Mediator; La Chaux-de-Fonds
Material Various materials
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 560 x 300 x 225 mm / 22 x 11.8 x 8.9 inch
Notes
3 Band reception:
  • LW: 708 - 2000 m.
  • BC: 175 - 585 m.
  • SW: 13,8 - 51 m.
Tuning scale light bulbs type: 8091D (6,3V, 640mA).
Loudspeaker Philips type 9646. Connectors for second loudspeaker and for pick-up.


Push button preselector system (Linodyne system) with 9 buttons defined from left to right as: 3 for LW or MW, 3 for MW only and 1 for manual tuning on LW, MW and SW.

Wooden cabinet with bakelite front.

The technical manual mentions dimensions and weight which are identical to those of model Philips 680A although the form of the cabinet is different.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Source of data Radiokatalog Band 2, Ernst Erb

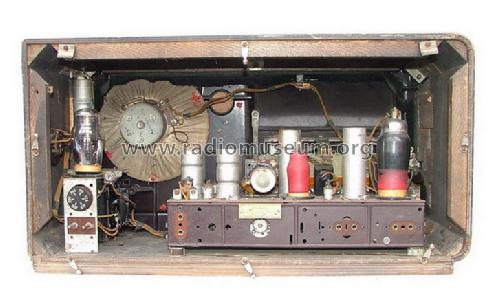

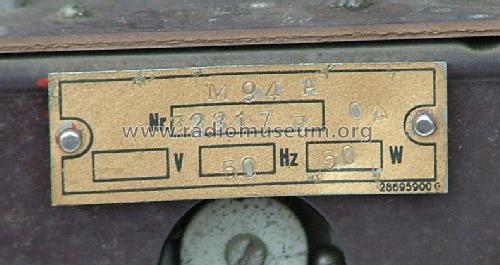

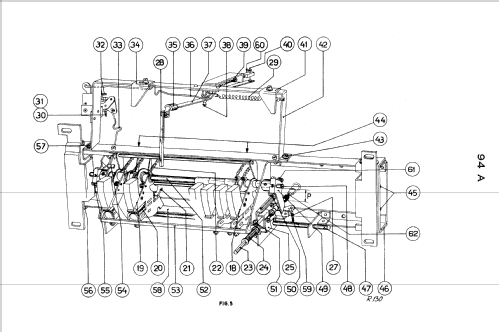

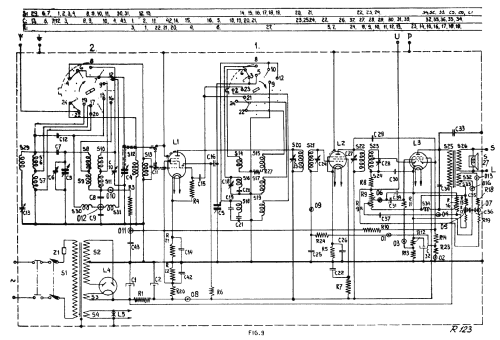

Literature/Schematics (1) -- Original-techn. papers. (Generic model 94A by Philips dated 1939)

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
