For model H94A, H94A -20, NSF Nederlandsche Seintoestellen Fabriek, Hilversum:
Keine Herstellerfirma sichtbar aber Typenschild zeigt H94A, Chassis wie Philips 680A in RM.org.

Country:  Netherlands
Manufacturer / Brand:  NSF Nederlandsche Seintoestellen Fabriek, Hilversum
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 EF9 EBL1 AZ1
Main principle Superheterodyne (common); ZF/IF 128 kHz; 1 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: H94A, H94A -20 - NSF Nederlandsche
Material Various materials
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 560 x 300 x 220 mm / 22 x 11.8 x 8.7 inch
Notes
3 Band reception:
  • LW: 708 - 2000 m.
  • BC: 175 - 585 m.
  • SW: 13,8 - 51 m.
Tuning scale light bulbs type: 8091D (6,3V, 640mA).
Loudspeaker Philips type 9646. Connectors for second loudspeaker and for pick-up.


Push button preselector system (Linodyne system) with 9 buttons defined from left to right as: 3 for LW or MW, 3 for MW only and 1 for manual tuning on LW, MW and SW.

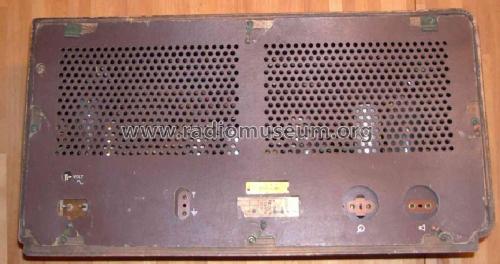

Wooden cabinet with bakelite front.

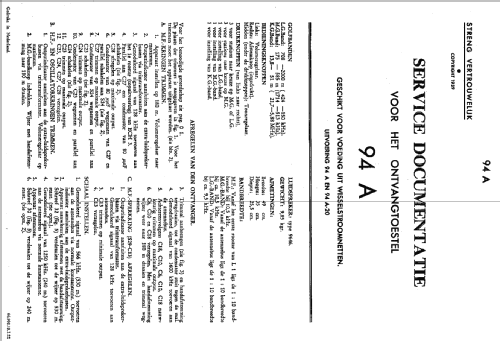

The technical manual mentions a variant -20 for the Belgian market. Since it is not known where this variant was produced (Eindhoven or Leuven), it is mentioned for both factories.

The technical manual mentions dimensions and weight which are identical to those of model Philips 680A although the form of the cabinet is different.
Net weight (2.2 lb = 1 kg) 10.3 kg / 22 lb 11 oz (22.687 lb)
Price in first year of sale 119.00 Hfl
Source of data Technisch- Commercieel - Radio Vademecum Staleman
Mentioned in Technisch- Commercieel - Radio Vademecum Staleman (H.2)

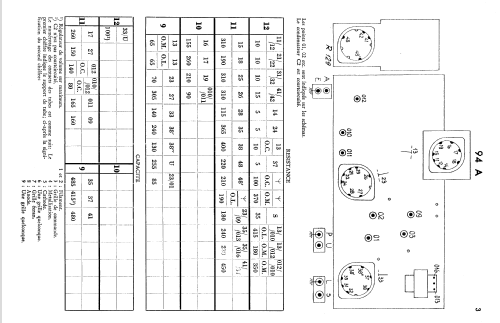

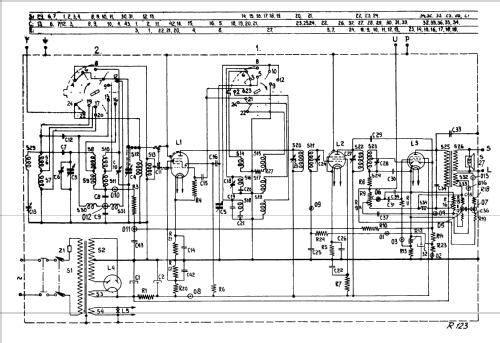

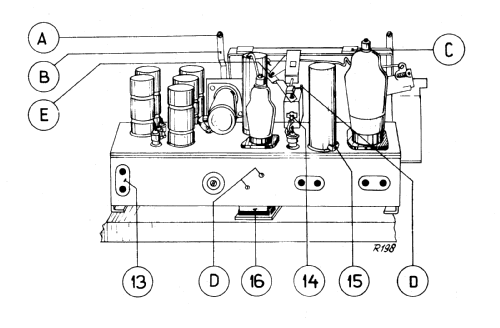

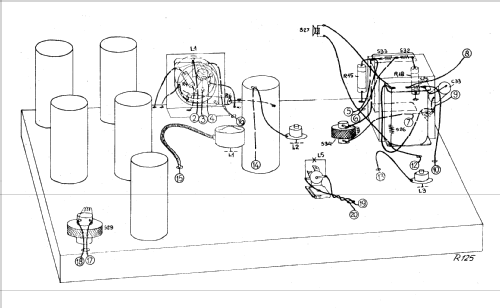

Literature/Schematics (1) -- Original-techn. papers. (Generic model 94A by Philips dated 1939)

Model page created by John Koster. See "Data change" for further contributors.
