MD3107A
Mediator; La Chaux-de-Fonds
- Country
- Switzerland
- Manufacturer / Brand
- Mediator; La Chaux-de-Fonds
- Year
- 1960/1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 12445

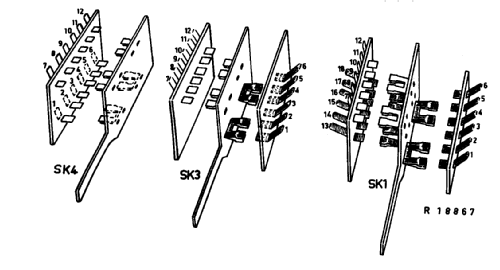

Bild aus dem Service Manual

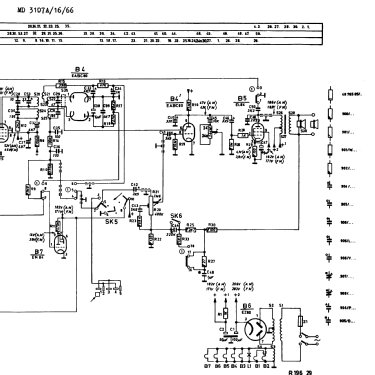

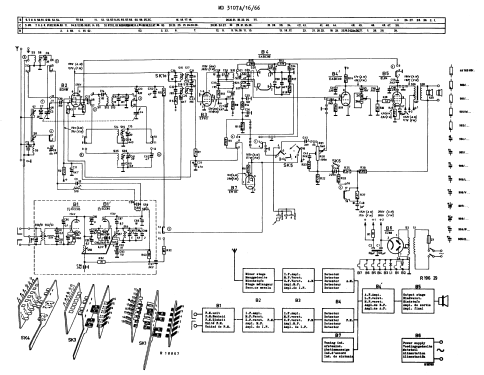

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: MD3107A - Mediator; La Chaux-de-Fonds
- Dimensions (WHD)
- 435 x 215 x 192 mm / 17.1 x 8.5 x 7.6 inch
- Notes
- Wurfantenne für UKW+KW; 4 Tasten links, 4 Drehknöpfe rechts. Auf dem Gerät findet man auch die Bezeichnung MD3107A/66 (Gerät aus Spanien). Möglicherweise ist das eine Exportvariante ... Wer hat andere Zusätze?
- Price in first year of sale
- 260.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
