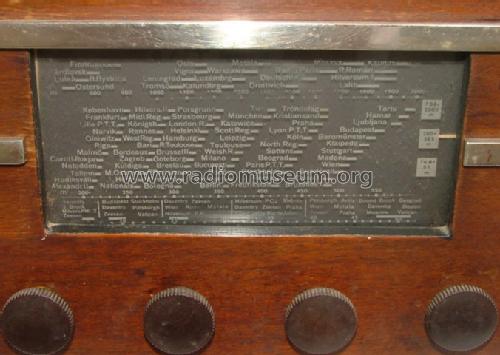

Unknown Ch= 629B-19; Mediator; La Chaux- (ID = 356543) Radio Unknown Ch= 629B-19; Mediator; La Chaux- (ID = 356544) Radio
Unknown Ch= 629B-19; Mediator; La Chaux- (ID = 1129029) Radio Unknown Ch= 629B-19; Mediator; La Chaux- (ID = 1129030) Radio
Unknown Ch= 629B-19; Mediator; La Chaux- (ID = 1129031) Radio
Use red slider bar for more.
Unknown Ch= 629B-19; Mediator; La Chaux- (ID = 356542) Radio
Mediator; La Chaux-: Unknown Ch= 629B-19 [Radio] ID = 356542 802x523
Select picture or schematic to display from thumbnails on the right and click for download.
For model Unknown Ch= 629B-19, Mediator; La Chaux-de-Fonds:
Kaunas Lithuania

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1939/1940 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: KK2 KF4 KB2 KL4
Main principle Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s); Reflex
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 2 & 144 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Unknown Ch= 629B-19 - Mediator; La Chaux-de-Fonds
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 545 x 300 x 190 mm / 21.5 x 11.8 x 7.5 inch
Notes

Radio-Chassis = Philips 629B-19.

Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from Mediator; La Chaux-de-Fonds
Here you find 349 models, 299 with images and 223 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Mediator; La Chaux-: Unknown Ch= 629B-19
Threads: 1 | Posts: 2
Hits: 1700     Replies: 1
mediator: Ch= 629B; Unknown
Felix Schaffhauser
20.Dec.11
  1

I am currently trying to correct/complete data for the various Mediator models.

The Model "Unknown Ch=629B" contains pictures, where one shows at the backside a plate with hopefully a Model number. Could somebody (preferably Zenonas Langaitis, who uploaded the model) verify this plate at the chassis rear side and communicate the data thereon?!

Many thanks

Felix Schaffhauser

Zenonas Langaitis
28.Dec.11
  2

 Mr. Felix

 I  sent   pictures  of  this   radio   by   your   e-mail

 Zenonas  Langaitis
