Analyst 10-1154
Meissner Mfg. Div., Maguire Industries, Inc. (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Meissner Mfg. Div., Maguire Industries, Inc. (IL)
- Year
- 1939
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 337051
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- from Radiomuseum.org
- Model: Analyst 10-1154 - Meissner Mfg. Div., Maguire
- Notes
-

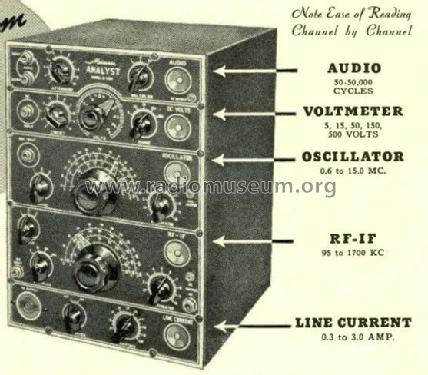

The Meissner Analyst model 10-1154 was the first of three Meissner Analyst models. It was used for servicing radios and audio equipment as a multi-function signal tracer sold in kit form. The device used five 6E5 eye tubes, one for each function. Those functions were a TRF tuner for IF and RF signal tracing (95 kHz to 1700 kHz), a single stage TRF tuner used for frequency determination (0.6 to 15 MHz) of a radio local oscillator, a line current meter, a single stage audio amplifier, and a high impedance DC voltmeter. Model number 9-1025, priced at $88.75, was the factory-built equivalent of kit model 10-1154. The third model 9-1040, introduced in late 1940 as the "1941" model, substituted a meter for the eye tube of the voltmeter function. The five-function Analyst competed with the Rider Chanalyst. The 9-1040 Analyst, with its voltmeter, was a full functional copy of the Rider Chanalyst 11A and the RCA-Rider model 162 with nearly identical circuitry and capabilities.
- Price in first year of sale
- 60.00 USD
- Mentioned in
- Radio Retailing (Radio & Television R.) (June 1939, pg. 51, ad for "New" Meissner Analyst)
- Literature/Schematics (1)

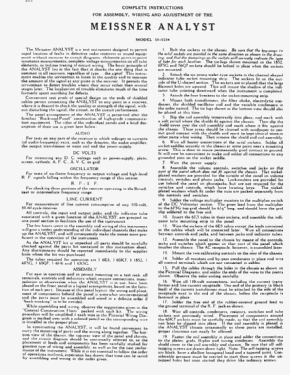

- - - Manufacturers Literature (Meissner 'How to Build' Instruction Manual (1940))
- Literature/Schematics (2)
- Radio Craft (Nov. 1939, An Easily-Built Stage Analysis Tester, James F. Rinke, pages 278-279, 308.)
- Author
- Model page created by Rich Post. See "Data change" for further contributors.
