W631S 3D

W631S; Meisterfunk; Radio- (ID = 88382) Radio W631S; Meisterfunk; Radio- (ID = 88414) Radio

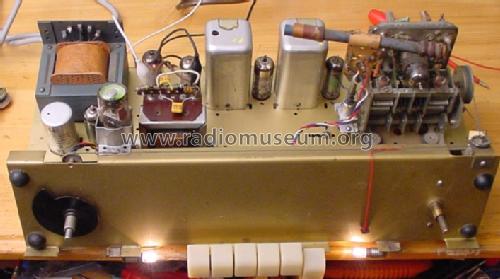

W631S; Meisterfunk; Radio- (ID = 88415) Radio W631S; Meisterfunk; Radio- (ID = 88416) Radio
Use red slider bar for more.
W631S; Meisterfunk; Radio- (ID = 88382) Radio
Meisterfunk; Radio-: W631S [Radio] ID = 88382 467x541
Select picture or schematic to display from thumbnails on the right and click for download.
For model W631S 3D, Meisterfunk; Radio-Fernsehen-Eisvogel (RFE) GmbH; Saarbrücken, später Woerth (Bas-Rhin) und Paris:
aus Originalprospekt

Country:  Germany
Manufacturer / Brand:  Meisterfunk; Radio-Fernsehen-Eisvogel (RFE) GmbH; Saarbrücken, später Woerth (Bas-Rhin) und Paris
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF85 EABC80 EM34 EL84 EZ80
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC)
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: W631S [3D] - Meisterfunk; Radio-Fernsehen-
Material Wooden case
Shape Console with Push Buttons.
Notes drehbare Ferritantenne, UKW-Gehäusedipol, Hochglanz-Holzgehäuse.
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

Model page created by Iven Müller. See "Data change" for further contributors.



All listed radios etc. from Meisterfunk; Radio-Fernsehen-Eisvogel (RFE) GmbH; Saarbrücken, später Woerth (Bas-Rhin) und Paris
Here you find 35 models, 19 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
