M169/35 GW (169/35GW)

M169/35 GW ; Mende - Radio H. (ID = 28050) Radio

M169/35 GW ; Mende - Radio H. (ID = 28051) Radio

M169/35 GW ; Mende - Radio H. (ID = 4507) Radio

M169/35 GW ; Mende - Radio H. (ID = 170096) Radio

M169/35 GW ; Mende - Radio H. (ID = 170086) Radio

M169/35 GW ; Mende - Radio H. (ID = 170087) Radio

M169/35 GW ; Mende - Radio H. (ID = 170094) Radio

M169/35 GW ; Mende - Radio H. (ID = 170093) Radio

M169/35 GW ; Mende - Radio H. (ID = 170091) Radio

M169/35 GW ; Mende - Radio H. (ID = 170092) Radio
M169/35 GW ; Mende - Radio H. (ID = 761180) Radio M169/35 GW ; Mende - Radio H. (ID = 761182) Radio
M169/35 GW ; Mende - Radio H. (ID = 761183) Radio M169/35 GW ; Mende - Radio H. (ID = 761179) Radio
M169/35 GW ; Mende - Radio H. (ID = 1314473) Radio M169/35 GW ; Mende - Radio H. (ID = 761181) Radio
M169/35 GW ; Mende - Radio H. (ID = 761185) Radio M169/35 GW ; Mende - Radio H. (ID = 761177) Radio
M169/35 GW ; Mende - Radio H. (ID = 492) Radio M169/35 GW ; Mende - Radio H. (ID = 761186) Radio
Use red slider bar for more.
M169/35 GW ; Mende - Radio H. (ID = 761180) Radio

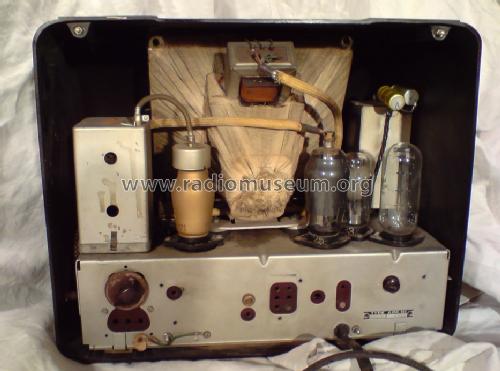

Mende - Radio H.: M169/35 GW [Radio] ID = 761180 805x700
Select picture or schematic to display from thumbnails on the right and click for download.

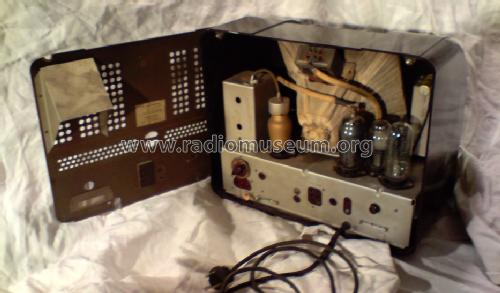

For model M169/35 GW (169/35GW), Mende - Radio H. Mende & Co. GmbH, Dresden:

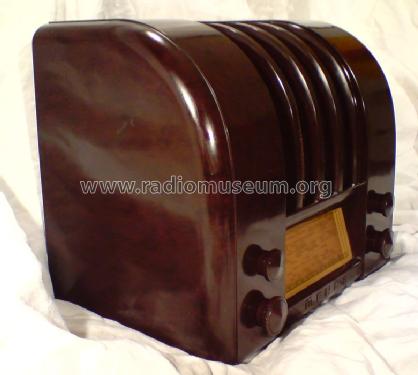

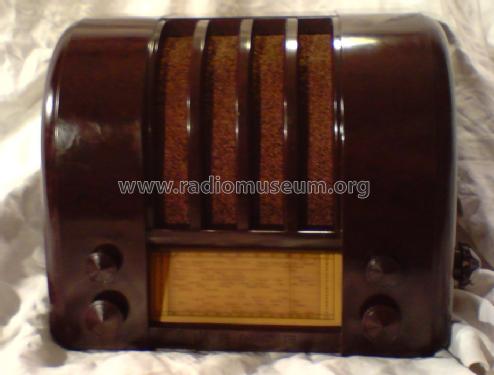

Mende 169/35GW Peter Kahlich.

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: CF7 CL2 CY1 EUVI or EUX
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 100-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: M169/35 GW - Mende - Radio H. Mende & Co.
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 390 x 320 x 240 mm / 15.4 x 12.6 x 9.4 inch
Notes

Das Typschild des Empfängers zeigt M169/35 GW, dagegen führen die Service-Unterlagen die Typbezeichnung 169/35GW.
Es handelt sich dabei um dasselbe Modell.

Price in first year of sale 190.00 RM

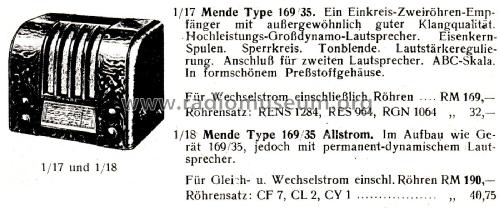

Source of data Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb

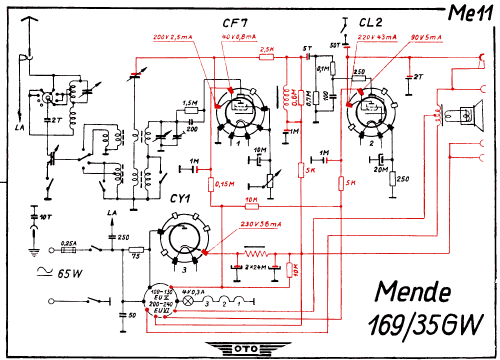

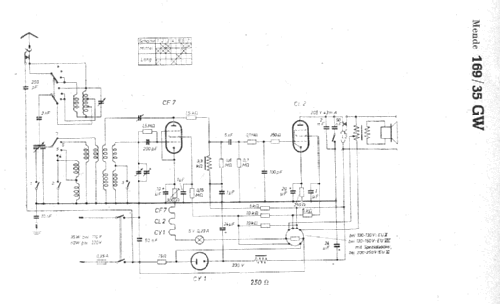

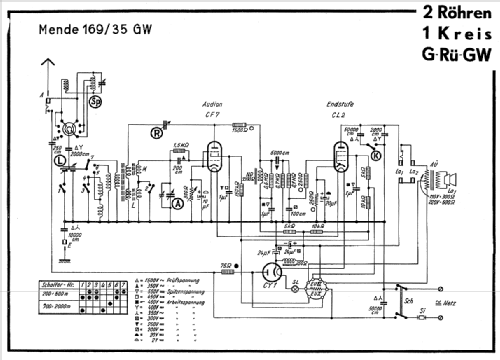

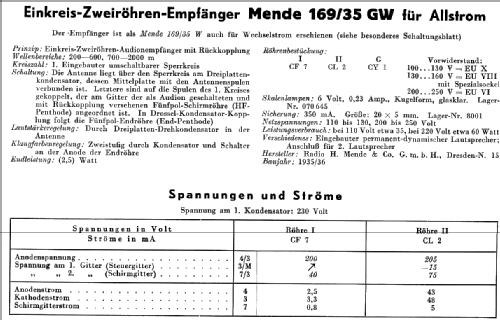

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung

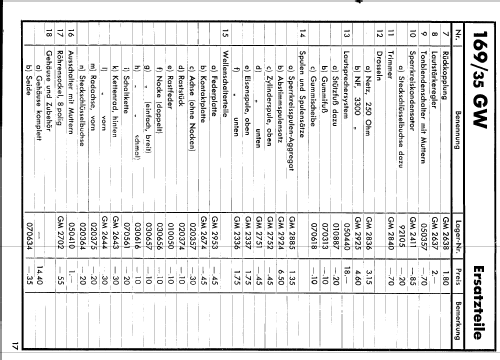

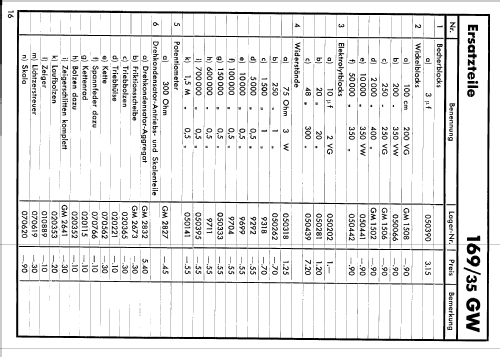

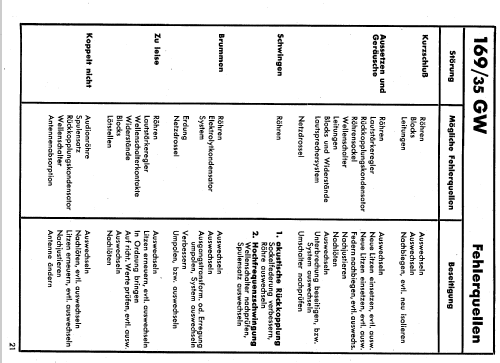

Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
Documents regarding this model
  Mende 169/35GW Anleitung für den Gebrauch 1714 KB
