M210-G (210G)

M210-G ; Mende - Radio H. (ID = 28072) Radio

M210-G ; Mende - Radio H. (ID = 28073) Radio

M210-G ; Mende - Radio H. (ID = 4873) Radio

M210-G ; Mende - Radio H. (ID = 178764) Radio

M210-G ; Mende - Radio H. (ID = 178756) Radio

M210-G ; Mende - Radio H. (ID = 178763) Radio

M210-G ; Mende - Radio H. (ID = 178762) Radio

M210-G ; Mende - Radio H. (ID = 178760) Radio

M210-G ; Mende - Radio H. (ID = 178761) Radio

M210-G ; Mende - Radio H. (ID = 178757) Radio
M210-G ; Mende - Radio H. (ID = 25874) Radio M210-G ; Mende - Radio H. (ID = 25875) Radio
M210-G ; Mende - Radio H. (ID = 25876) Radio M210-G ; Mende - Radio H. (ID = 693607) Radio
M210-G ; Mende - Radio H. (ID = 708164) Radio M210-G ; Mende - Radio H. (ID = 1580196) Radio
Use red slider bar for more.
M210-G ; Mende - Radio H. (ID = 25874) Radio
Mende - Radio H.: M210-G [Radio] ID = 25874 655x680
Select picture or schematic to display from thumbnails on the right and click for download.
For model M210-G (210G), Mende - Radio H. Mende & Co. GmbH, Dresden:
aus Sammlung Frerichs

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RENS1894 BB1 BL2 U918
Main principle TRF with diode detector; 1 Special; 1 AF stage(s); Reflex
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: M210-G - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 355 x 385 x 260 mm / 14 x 15.2 x 10.2 inch
Notes   Das Typschild des Empfängers zeigt M210G, dagegen führen die Service-Unterlagen die Typbezeichnung 210G. Es handelt sich dabei um dasselbe Modell.
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 218.00 RM !
Source of data Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung

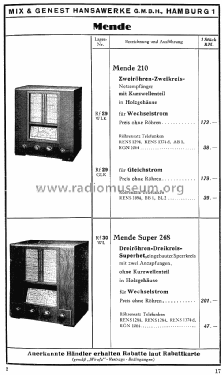

Mentioned in Radio-Katalog, Mix & Genest Hansawerke, 1935
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
